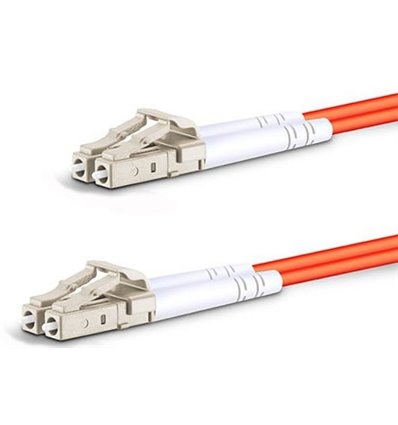

LC-LC Fiber Optic Plenum Multimode Cable Duplex OM1 62.5/125 OFNP
LC-LC Fiber Optic Plenum Multimode Cable Duplex OM1 62.5/125 OFNP
LC-LC Fiber Optic Plenum Multimode Cable Duplex OM1 62.5/125 OFNP
LC-LC Fiber Optic Plenum Multimode Cable Duplex OM1 62.5/125 OFNP

LC-LC Fiber Optic Plenum Multimode Cable Duplex OM1 62.5/125 OFNP

Cables4sure
501001PL
$13.99

Made in USA. Lenght: 1m-300m

Fiber Length

Description

Plenum rated cable is coated with a fire retardant coating, so that in case of a fire it does not give off toxic gasses and smoke as it burns.
Although the National Electric Code may allow non-plenum cable, the final decision is up to your local Fire Marshall. Most cities adopt the national codes as their own without revision, but some cities modify or expand them and require plenum-rated cable in all situations. Regardless of the code or its interpretation, your Fire Marshall makes the final decision. We recommend that you contact your Fire Marshall if you have questions.

Multimode 62.5/125 OM1 Duplex Fiber optic cable for gigabit optical network, specifically designed for fast ethernet, fiber channel, Infiniband®, ATM and gigabit ethernet applications.

Applications:
ATM, Infiniband®, Fast Ethernet, Gigabit Ethernet, Fiber Channel

Specifications:

Connector A: 2x LC (Lucent connector)
Connector B: 2x LC (Lucent connector)
Maximum Connector Loss: 0.50 dB
Typical Connector Loss: 0.30 dB
Typical Return Loss: -25 dB
Buffer Material: PVC
Jacket Material: OFNP Plenum Rated
Color: Orange
Jacket OD: 2 mm
Fiber Type: Multimode 62.5/125µ (OM1)
Attenuation at 1300 nm: 1.0 dB/km
Attenuation at 850 nm: 3.5 dB/km
Operating Temperature: 20°C to +70°C
Installation Tensile Load: 100 N (445 lbs)
Long-Term Tensile Load: 50 N (222 lbs)
Maximum Tensile Load: 100 N/cm
Installation (Loaded) Minimum Bend Radius: 5.0cm (1.97in)
Long-Term (Unloaded) Minimum Bend Radius: 3.0cm (1.2in)
Crush Resistance: 750 N/cm
Impact Resistance: 1,000 cycles
Flex Resistance: 5,000 cycles

 Each cable is 100% optically inspected and tested for insertion loss
 RoHS Compliant
 Note: This is custom made cable, please allow 24-48 hours for assembly.
