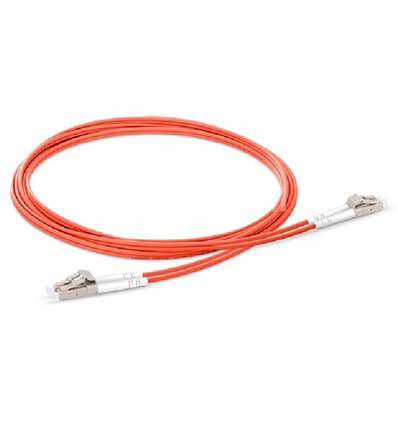

LC-LC Fiber Optic Multimode Cable Duplex OM1 62.5/125 OFNR

LC-LC Fiber Optic Multimode Cable Duplex OM1 62.5/125 OFNR

Brand: Cables4sure

Reference 501001

$5.35

Made in USA. Lenght: 1m-300m

Fiber Length

Description

Multimode 62.5/125 OM1 Duplex Fiber optic cable for gigabit optical network, specifically designed for fast ethernet, fiber channel, Infiniband®, ATM and gigabit ethernet applications.

Applications:
ATM, Infiniband®, Fast Ethernet, Gigabit Ethernet, Fiber Channel

Specifications:

Connector A:	2x LC (Lucent connector)
Connector B:	2x LC (Lucent connector)
Maximum Connector Loss:	0.50 dB
Typical Connector Loss:	0.30 dB
Typical Return Loss:	-25 dB
Buffer Material:	PVC
Jacket Material:	OFNR Riser Rated
Color:	Orange
Jacket OD:	2 mm
Fiber Type:	Multimode 62.5/125µ (OM1)
Attenuation at 1300 nm:	1.0 dB/km
Attenuation at 850 nm:	3.5 dB/km
Operating Temperature:	20°C to +70°C
Installation Tensile Load:	100 N (445 lbs)
Long-Term Tensile Load:	50 N (222 lbs)
Maximum Tensile Load:	100 N/cm
Installation (Loaded) Minimum Bend Radius:	5.0cm (1.97in)
Long-Term (Unloaded) Minimum Bend Radius:	3.0cm (1.2in)
Crush Resistance:	750 N/cm
Impact Resistance:	1,000 cycles
Flex Resistance:	5,000 cycles
