Cat5e Ethernet Plenum Cable
Fast Ethernet and Gigabit computer networks require Enhanced Category5 high-speed cabling to distribute data, voice and video.
Cables4sure Enhanced Cat5 350Mh Snag less Patch Cables are always extremely High quality. These CAT5e cables will handle bandwidth intensive applications up to 350 MHz and beyond. Each CAT5e cable comes UL verified to meet all Cat 5e cables TIA/EIA standards, and drastically reduce both impedance and structural return loss (SRL) as compared to standard 100 MHz CAT5 cable. Constructed with high-quality wire and a shortened body plug will keep Near-end Cross talk (NEXT) levels to a minimum. The molded, snag-free boot prevents unwanted cable snags during installation and provides extra strain-relief. Cables4sure 350 MHz Snag less CAT5e patch cables are available in a variety of colors to easily color-code your network installation.

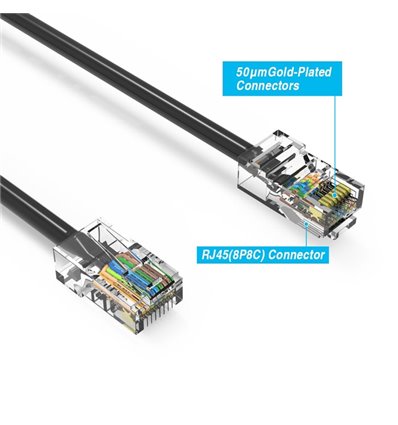

-Cat5e Ethernet cable connector: 50-micron gold plated RJ-45 Male to Male
-Cat5e Ethernet cable conductor: 4-pair 24 AWG Solid Copper
-Cat5e Ethernet cable jacket: PVC
-Molded, Snag-Free boot prevents unwanted cable snags
-1000 BASE-T; 100 BASE-T; 10 BASE-T (IEEE 802.3)
-4/16 Mbps Token Ring (IEEE 802.5); 100 VG-Any LAN
-100 Mbps TP-PMD (ANSI X3T9.5); 55/155 Mbps ATM
-Cat5e cable designed For: Network Adapters, Hubs, Switches, Routers, DSL/Cable Modems, Patch Panels and other twisted-pair applications
-Cables4sure Cat5e Ethernet cable exceeds Category 5e cables specifications
-Wired: TSB 568B (AT&T 258A)
Category 5e (Enhanced) cable is an enhanced version of Category 5 cable. Cat5eEthernet cable is capable of transmitting data at speeds of up to 1000 Mbps (1 Gigabit per second).
The RJ45 jack (8P8C) is an 8-conductor, modular jack used to terminate UTP data cable.
Booted or Unbooted Cat5e Ethernet Cable:
There is no different between those two in technical specification, some peoplepreffer booted for protecting the plug for unwanted release, some preffer unbootedbecause they provide easier access to the plug.
UTP Cat5e Ethernet Cable:
Unshielded Twisted Pair, most popular type of cable due to its low cost.
Shielded Cat5e Ethernet Cable:
Shielded (STP) Cat5e Ethernet cable provide extra protection against electromagneticinterference.

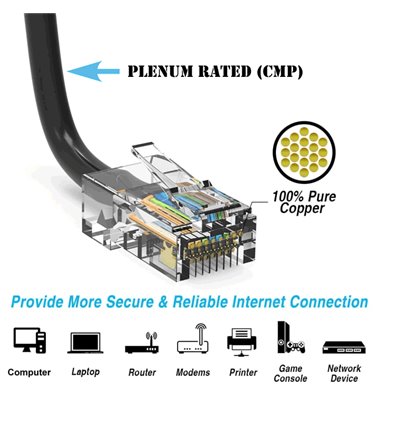

Plenum Cat5e Ethernet Cable:
Plemun cable is made to fire code, cable must be fireproof and made from materialthat dos not produce toxic or fumes in case of fire. Cat5e Ethernet pleanum cableis required for instalation in many commercial buildings.
Difference between 568a and 568b:
Those are two standards for connecting Cat5e ethernet cable to connectors, both of them deffine the pinout or specific order how Cat5e patch cable need to be terminated.568-b is most commonly used in Cat5e Ethernet cables.
