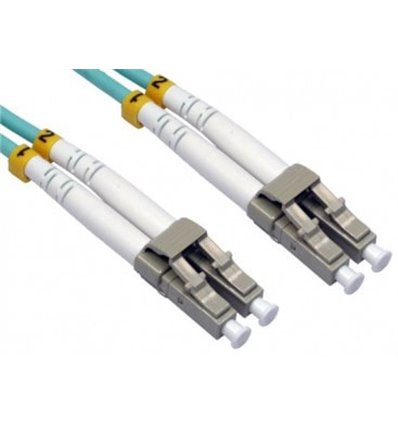

LC-LC Fiber Optic Plenum Multimode Cable Duplex OM4 50/125 OFNP
LC-LC Fiber Optic Plenum Multimode Cable Duplex OM4 50/125 OFNP
LC-LC Fiber Optic Plenum Multimode Cable Duplex OM4 50/125 OFNP
LC-LC Fiber Optic Plenum Multimode Cable Duplex OM4 50/125 OFNP

LC-LC Fiber Optic Plenum Multimode Cable Duplex OM4 50/125 OFNP

Cables4sure
541001PL
$16.48

Made in USA. Lenght: 1m-300m

Fiber Length

Description

Plenum rated cable is coated with a fire retardant coating, so that in case of a fire it does not give off toxic gasses and smoke as it burns.
Although the National Electric Code may allow non-plenum cable, the final decision is up to your local Fire Marshall. Most cities adopt the national codes as their own without revision, but some cities modify or expand them and require plenum-rated cable in all situations. Regardless of the code or its interpretation, your Fire Marshall makes the final decision. We recommend that you contact your Fire Marshall if you have questions.

Multimode 50/125 OM4 Duplex Fiber optic cable for gigabit optical network, specifically designed for fast ethernet, fiber channel, Infiniband®, ATM and gigabit ethernet applications.

Applications:
ATM, Infiniband®, Fast Ethernet, Gigabit Ethernet, Fiber Channel

Description
Connector Type
LC UPC to LC UPC
Fiber Grade
Bend Insensitive
Fiber Mode
OM4 50/125μm
Wavelength
850/1300nm
40G Ethernet Distance
150m at 850nm
100G Ethernet Distance
100m at 850nm
Insertion Loss
≤0.3dB
Return Loss
≥30dB
Min. Bend Radius
(Fiber Core)
7.5mm
Min. Bend Radius
(Fiber Cable)
20/10D (Dynamic/Static)
Attenuation at 850nm
3.0 dB/km
Attenuation at 1300nm
1.0 dB/km
Fiber Count
Duplex
Cable Diameter
2.0mm
Cable Jacket
OFNP
Polarity
A (Tx) to B (Rx)
Operating Temperature
-20~70°C
Storage Temperature

-40~80°C

Product Details

619660873550
FD541PL
